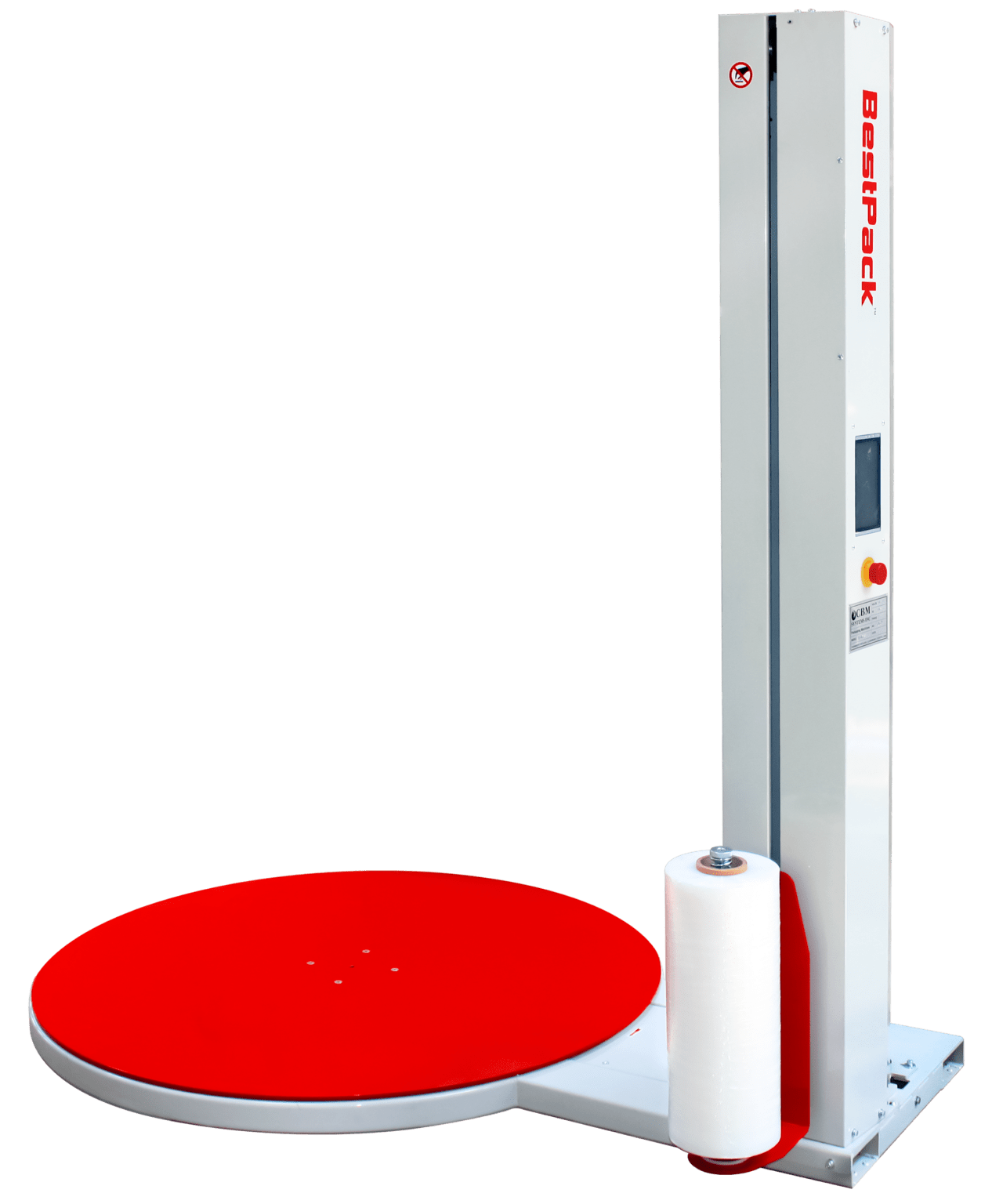

BestPack CBM Systems B120i Pallet Wrapper

The BestPack B120i Low Profile Semi-Automatic Stretch Wrapper is a practical and cost-effective solution for operations looking to upgrade from manual hand wrapping. Designed to improve efficiency while reducing operator fatigue, the B120i streamlines pallet wrapping with consistent, reliable performance.

At the core of the machine is a modern HMI touchscreen control panel, providing intuitive navigation and precise control over wrap settings. Operators can quickly adjust parameters to ensure consistent results across varying load types, helping maintain product stability during storage and transit.

The clutch tension stretch system delivers uniform film application, ensuring secure load containment without unnecessary film waste. Combined with the Easy Film Feed design, which eliminates the need for film threading, the B120i minimizes downtime and simplifies film changes for faster operation.

Built for durability and ease of use, the B120i is ideal for warehouses and production environments seeking an efficient, user-friendly, and economical pallet wrapping solution.

  • Low Profile
  • Semi-Automatic
  • Clutch Tension Setting Up To 120% Film Stretch
Film Delivery Features
  • Standard 20″ Film Rolls (30″ Option)
  • Roller Ratio Pre-Stretch up to 120%
  • Direct Film Feed Carriage (No Film Threading Required)
  • Single Aluminum Rollers with Fixed Ratio
  • Automatic Pallet Height Sensor with Adjustable Sensor Position
Machine Specifications
  • Film Delivery System:
    Clutch Tension Setting Provides up to 120% Film Stretch
  • Production Speed:
    25-35 Loads/Hour Based on Load Configuration
  • Maximum Load Size:
    53″ L x 53″ W x 82″ H
  • Maximum Load Weight:
    4,000 lbs
  • Power:
    110V, 60Hz, 20 Amps
  • Estimate Machine Weight:
    2,000 lbs.
  • Machine Dimension:
    98″ L x 59″ W x 86″ H
Turntable / Frame Features
    • 58″ Diameter, 3/8″ Laser-Cut Steel Plate
    • 4,000lbs. Load Capacity
    • ANSI# 50 Chain Drive
    • Electronic Soft Start/Stop
    • 1/2HP, AC Drive Motor
    • Low Profile
    • No Maintenance, No need to Lube Drive System
    • 8 point Heavy Duty Roller Support System
    • Built-in Forklift Channels
    • Tower with Tilt-Down Hinge for Easy Shipping



Control Features
  • Home Position Button
  • Variable Turntable Speed 1-12 RPM
  • Variable Film Carriage Speed and Direction Controls
  • Spiral Up/Down Plus Spiral Up Only Wrap Patterns
  • Turntable Jog Switch
  • If Film Breaks, there is an Automatic Resume Feature
  • Motor Starter with Overload Reset and Electrical Overload Protection
  • Separate Top and Bottom Wrap Counters (0-9)
Factory Options
  • Loading Ramp (For Pallet Jack Use)
  • Integrated Electronic Scale
  • Wrap Height Extension (Add 16″ Increment)
  • Film Roping
  • Film Cutting Device
  • Dark Load Detection
  • Turntable Extension

Download PDF Brochure

Find out more about the BestPack CBM B120i Stretch Wrapper in this brochure complete with detailed specifications.
Please contact us for additional information about Stretch Wrappers, and our team will be happy to assist you.
