Stretch Wrappers

The BestPack B150 is a semi-automatic, low-profile pallet stretch wrapper machine, designed to efficiently fulfill pallet wrapping application needs. The B150 stretch wrapper stretches film up to 150% using Clutch Tension and Dual Rollers. It produces secure, consistent wraps, ensuring pallet load integrity and a professional appearance. The B150 is designed to eliminate poorly or inconsistently hand wrapped loads that result from operator fatigue, and it avoids the risk of back injury during hand wrapping.

The B150 stretch wrapper offers adjustable settings to suit your pallets, including variable film carriage speed and turntable speed controls.

The stretch wrapper line is available with integrated scale, extended wrap height, and larger turntable options. All BestPack stretch wrappers feature a heavy-duty frame and offer forklift channels for easy portability.

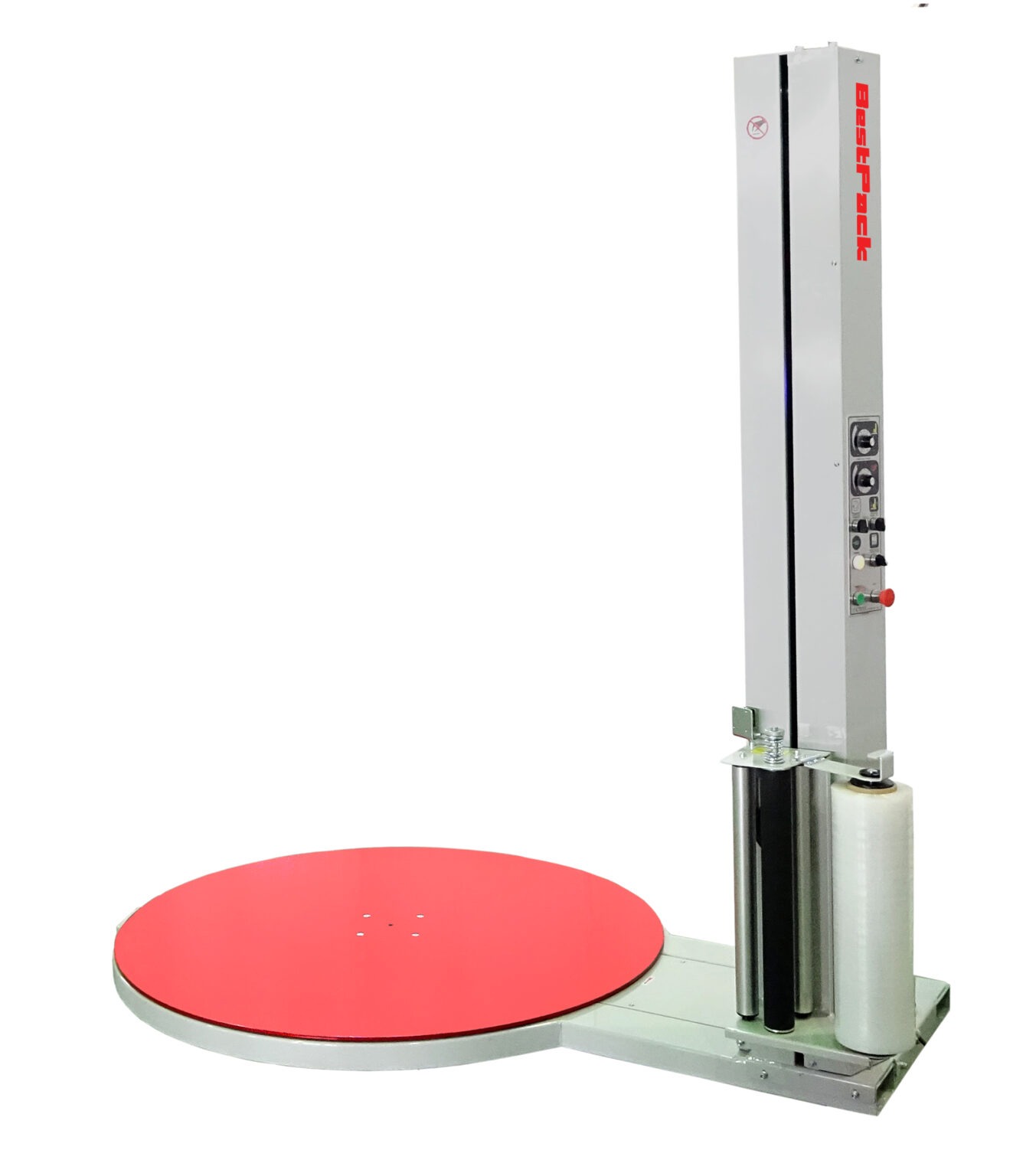

Reference photo of the B150 stretch wrapper machine
  • Low Profile
  • Semi-Automatic
  • Clutch Tension Setting Up To 150% Film Stretch
Film Delivery Features
    • Standard 20″ Film Rolls (30″ Option)
    • Roller Ratio Pre-Stretch up to 150%
    • Dual Rubber Rollers with Fixed Ratio
    • Economy Carriage with Direct Film Access
    • Automatic Pallet Height Sensor with Adjustable Sensor Position



Machine Specifications
  • Film Delivery System: Clutch Tension Setting Provides up to 150% Film Stretch
  • Production Speed: 25-35 Loads/Hour Based on Load Configuration
  • Maximum Load Size: 53″ L x 53″ W x 82″ H
  • Maximum Load Weight: 4,000 lbs
  • Power: 110V, 60Hz, 20 Amps
  • Estimate Machine Weight: 2,000 lbs
  • Machine Dimension: 98″ L x 59″ W x 86″ H
Turntable / Frame Features
    • 58″ Diameter, 3/8″ Laser-Cut Steel Plate
    • 4,000lbs. Load Capacity
    • ANSI# 50 Chain Drive
    • Electronic Soft Start/Stop
    • 1/2HP, AC Drive Motor with Allen-Bradley VFD
    • Low Profile
    • No Maintanance, No need to Lube Drive System
    • 8 point Heavy Duty Roller Support System
    • Built-in Forklift Channels
    • Tower with Tilt-Down Hinge for Easy Shipping



Control Features
    • On/Off with Power Indicator
    • Home Position Button
    • Variable Turntable Speed 1-12 RPM
    • Variable Film Carriage Speed and Direction Controls
    • Manual Controlled Reinforce Wrap
    • Spiral Up/Down Plus Spiral Up Only Wrap Patterns
    • Turntable Jog Switch
    • Omron PLC with Communication Port
    • If Film Breaks, there is an Automatic Resume Feature
    • Motor Starter with Overload Reset and Electrical Overload Protection
    • Separate Top and Bottom Wrap Counters (1-3)
    • Manual Film Tension Adjustment with Clutch Setting



Factory Options
  • Loading Ramp (For Pallet Jack Use)
  • Integrated Electronic Scale
  • Wrap Height Extension (Add 16″ Increment)
  • Film Roping
  • Film Cutting Device
  • Dark Load Detection
  • Turntable Extension



Download PDF Brochure

Find out more about the BestPack B150 Stretch Wrapper machine in this brochure complete with detailed specifications.
Please contact us for additional information about Stretch Wrappers, and our team will be happy to assist you.
