Fully Automatic Stretch Wrapper

The wide range of CBM System’s automatic stretch wrapping systems offer you high performance, durability, economy, and maximum versatility to meet you packaging application needs.

These stretch wrappers offer a convenient and cost-effective way to optimize your stretch wrapping applications.

  • Rotary
  • Automatic
  • Pre-Stretch Up To 300%

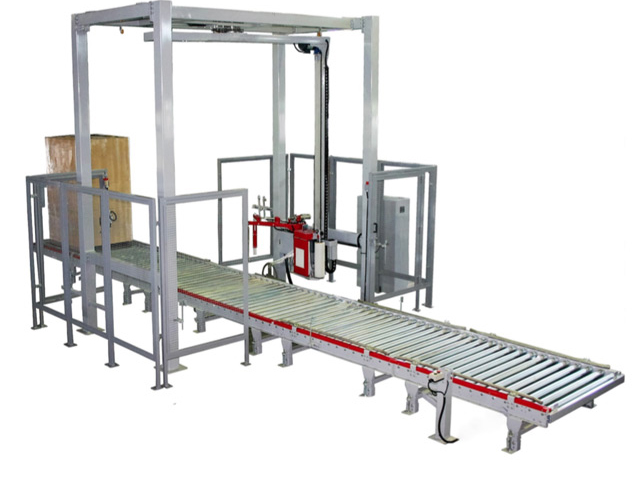

Reference photo of the RAC-300-A machine
Rotary Tower / Film Delivery Features
  • Standard 20″ Film Rolls (30″ Option Available)
  • Motorized Pre-stretch up to 300%, Other Ratios Available
  • See Thru Lexan Cover
  • Automatic Pallet Height Sensor with Adjustable Sensor Position
  • Film Force Release for Easy Pull at Start of Cycle
  • Automatic Film Break or Empty Roll Detection
  • Film Tension Control with Analog Sensor
  • Automatic Film Clamper and Cutter
  • Brush-On Film Tail Treatment
  • Counter Balance Arm for Smooth Rotation
  • Pneumatic Brake to Provide Quick Safety Stop
  • Rotary Arm Supported by 4 Legs Design
  • All Structural Steel Construction
Machine Specifications
  • Production Speed: 60 Loads/Hour Based on Load Configuration
  • Maximum Load Size: 48″ L x 42″ W x 80″ H
  • Air Requirement: 3.6 CFM at 90 PSI
  • Power: 230V, 15 Amps
  • Machine Dimension: 170″ L x 162″ W x 150″ H
Conveyor Features
  • Infeed / Outfeed with Loading Indexing Sensor
  • 2.5″ Diameter Roller on 3.75″ Centers
  • 52″ Between Frame Rails
  • All Forward Manual Mode
  • 1/2 HP Motor with Contactor
Control Features
  • PLC with 24V Control System
  • Touch Screen Operator Interface
  • Auto-Height Sensing Photoeye
  • Current Overload Protection
  • Separate Top and Bottom Wrap
  • Variable Rotary Arm Speed
  • Electronic Soft Start/Stop
  • E-Stop Mushroom Push Button
  • Safety Fencing Monitoring
Factory Options
  • Conveyor Specifications (Customizable)
  • Conveyor with Variable Speed Control
  • Pick up Bumper at Conveyor End
  • Wrap Height Extension
  • Heat Seal Unit

Download PDF Brochure

Find out more about the BestPack RAC-300-A Rotary Stretch Wrapper in this brochure complete with detailed specifications.
Download Now
Please contact us for additional information about Stretch Wrappers, and our team will be happy to assist you.
