BestPack CBM Systems S220 Pallet Wrapper

The BestPack S220 is a semi-automatic, low-profile stretch wrapper built for light- to heavy-duty pallet applications. It maximizes load security and reduces film use by pre-stretching up to 220%, delivering consistent, tight wraps every time.

Operator-friendly features make wrapping simple and efficient. Dancing bar technology handles tough corners, while the motorized roller assist quickly feeds film at the start of each cycle. The Easy Load film carriage allows fast, low-downtime roll changes.

The S220 line also offers options for integrated scales, extended wrap heights, and larger turntables. Every BestPack stretch wrapper features a heavy-duty frame and forklift channels for easy mobility and long-lasting performance.

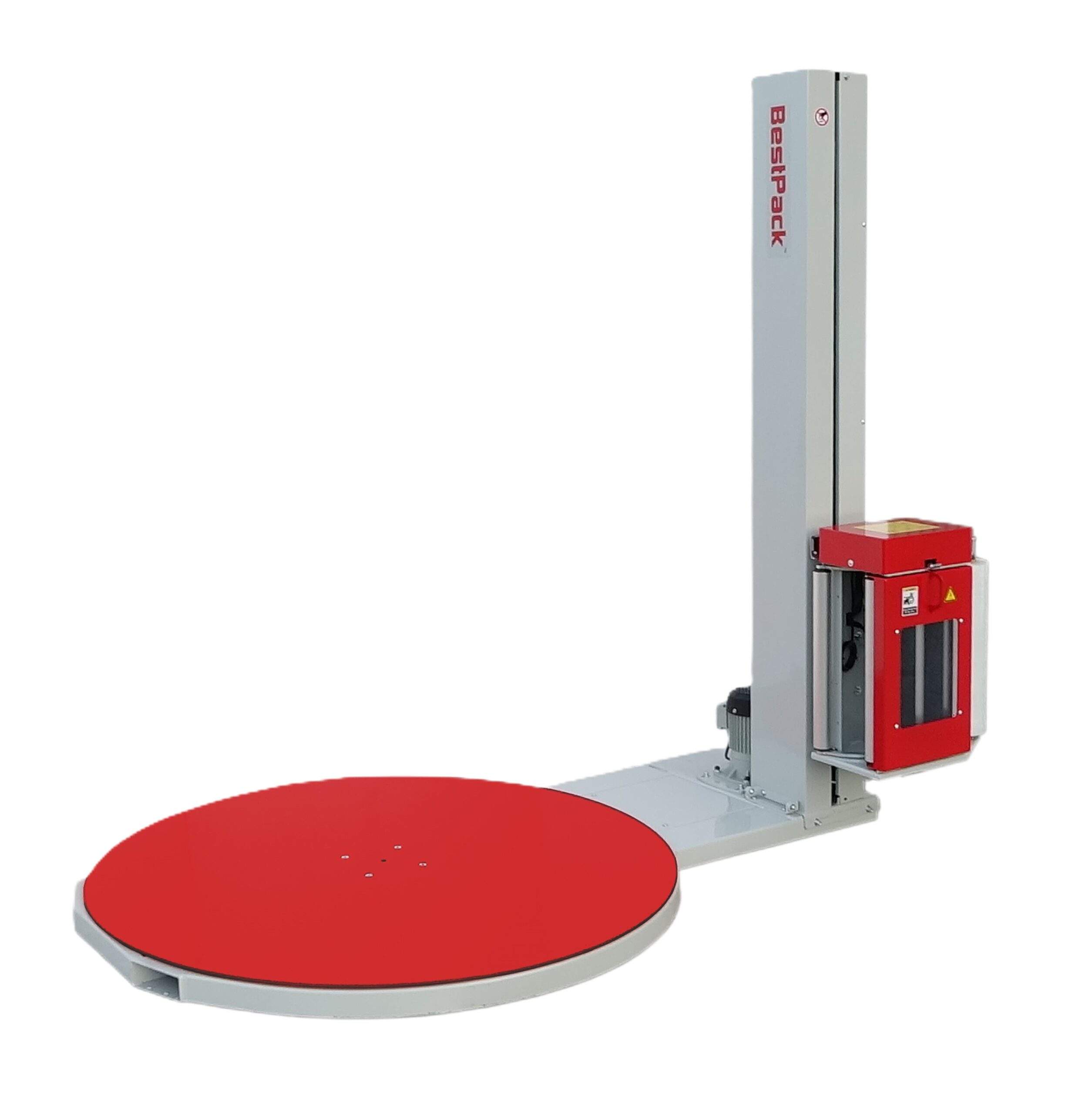

Reference photo of the S220 stretch wrapper machine
  • Low Profile
  • Semi-Automatic
  • Pre-Stretch Up To 220%
Film Delivery Features
    • Standard 20″ Film Rolls (30″ Option Available)
    • Motorized Pre-stretch up to 220%, Other Ratios Available
    • “Easy Load” Film Carriage with See Thru Lexan Cover
    • Automatic Pallet Height Sensor with Adjustable Sensor Position
    • Corner Compensating Dancing Bar and Analog Control
    • Film Force Release for Easy Pull at Start of Cycle
    • Automatic Film Break or Empty Roll Detection



Machine Specifications

Film Delivery System:
Motorized Pre-Stretch up to 220%

Production Speed:
25-35 Loads/Hour Based on Load Configuration

Maximum Load Size:
53″ L x 53″ W x 82″ H

Maximum Load Weight:
4,000 lbs

Power:
110V, 60Hz, 20 Amps

Estimate Machine Weight:
2,000 lbs.

Machine Dimension:
98″ L x 59″ W x 86″ H

Turntable / Frame Features
    • 58″ Diameter, 3/8″ Laser-Cut Steel Plate
    • 5,000lbs. Load Capacity
    • ANSI# 60 Chain Drive
    • Electronic Soft Start/Stop
    • 1/2HP, AC Drive Motor with Allen-Bradley VFD
    • Low Profile
    • No Maintanance, No need to Lube Drive System
    • 12 point Heavy Duty Roller Support System
    • Built-in Forklift Channels
    • Tower with Tilt-Down Hinge for Easy Shipping



Control Features
    • On/Off with Power Indicator
    • Home Position Button
    • Variable Turntable Speed 1-12 RPM
    • Variable Film Carriage Speed and Direction Controls
    • Manual Controlled Reinforce Wrap
    • Spiral Up/Down Plus Spiral Up Only Wrap Patterns
    • Turntable Jog Switch
    • Omron PLC with Communication Port
    • If Film Breaks, there is an Automatic Resume Feature
    • Motor Starter with Overload Reset and Electrical Overload Protection
    • Separate Top and Bottom Wrap Counters (0-9)



Factory Options
    • Loading Ramp (For Pallet Jack Use)
    • Integrated Electronic Scale
    • Wrap Height Extension (Add 16″ Increment)
    • Film Roping
    • Film Cutting Device
    • Dark Load Detection
    • Turntable Extension



Download PDF Brochure

Find out more about the BestPack S220 Stretch Wrapper in this brochure complete with detailed specifications.
Please contact us for additional information about Stretch Wrappers, and our team will be happy to assist you.
