BestPack CBM Systems S300-W Pallet Wrapper

The BestPack S300-W combines a built-in scale with our high-performance, low-profile S300 semi-automatic pallet wrapper—so you can weigh and wrap pallets in one seamless step. Instantly capture pallet weight and view it on the easy-to-read mounted LCD display. The machine’s advanced design isolates the load cells, ensuring you measure only the weight on the turntable for maximum accuracy.

Like the base S300 model, the S300-W pallet wrapper pre-stretches film up to 300%, reducing film costs while securing loads with superior stability. It handles everything from light- to heavy-duty pallet wrapping applications with consistent performance.

The S300 series increases productivity with exclusive features built for real-world demands. When wrapping sharp pallet corners, the corner-compensating dancing bar minimizes film tearing. Advanced tension control, banding, and customizable wrap patterns let you dial in the ideal wrap for every load.

Operators can get up and running quickly thanks to the Easy Load film carriage and Film Force Release system, which makes attaching and pulling film simple and efficient.

Optional enhancements include extended wrap heights and larger turntables to meet specific operational needs. Every unit features a heavy-duty frame and built-in forklift channels for easy relocation within your facility.

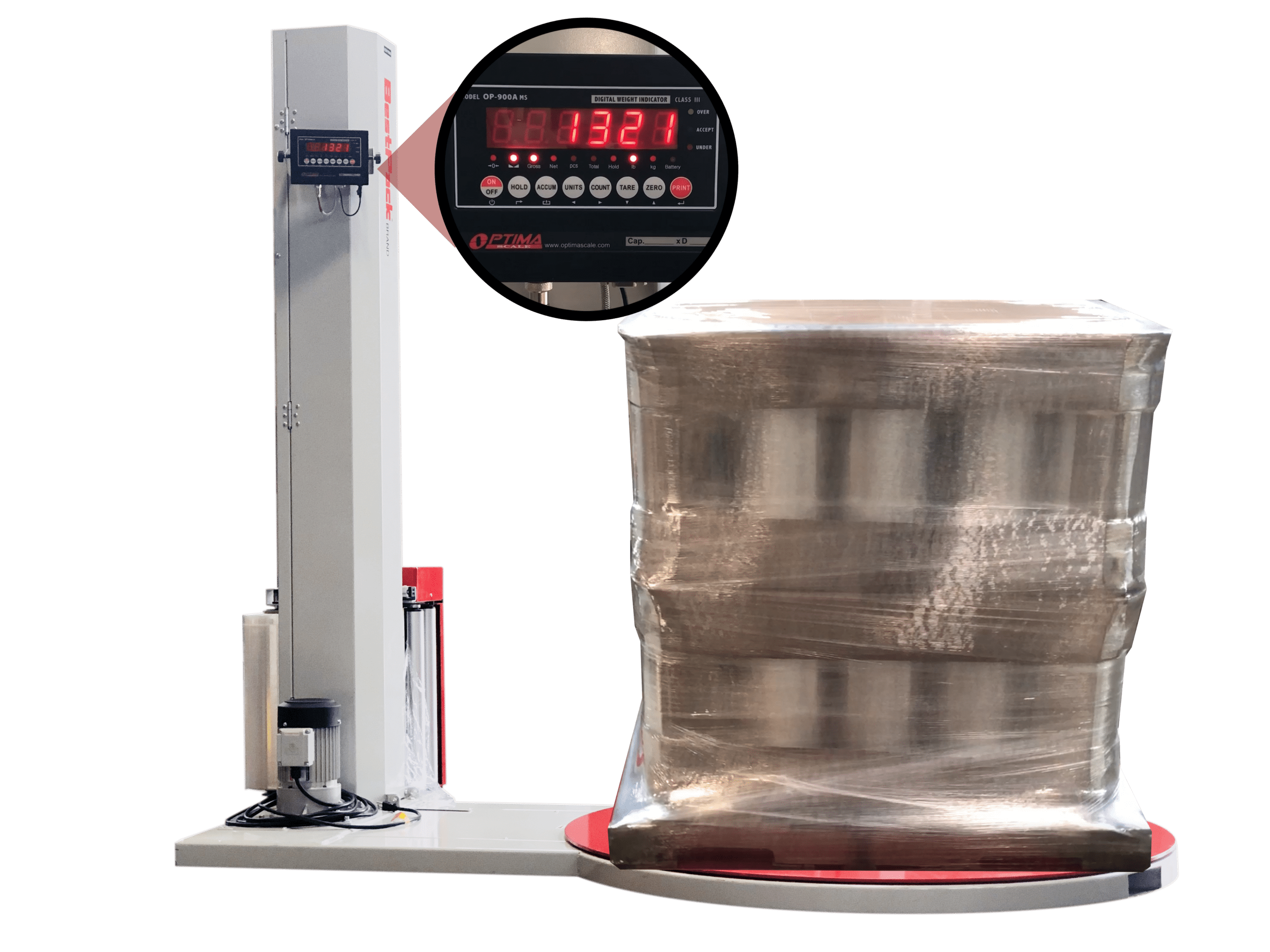

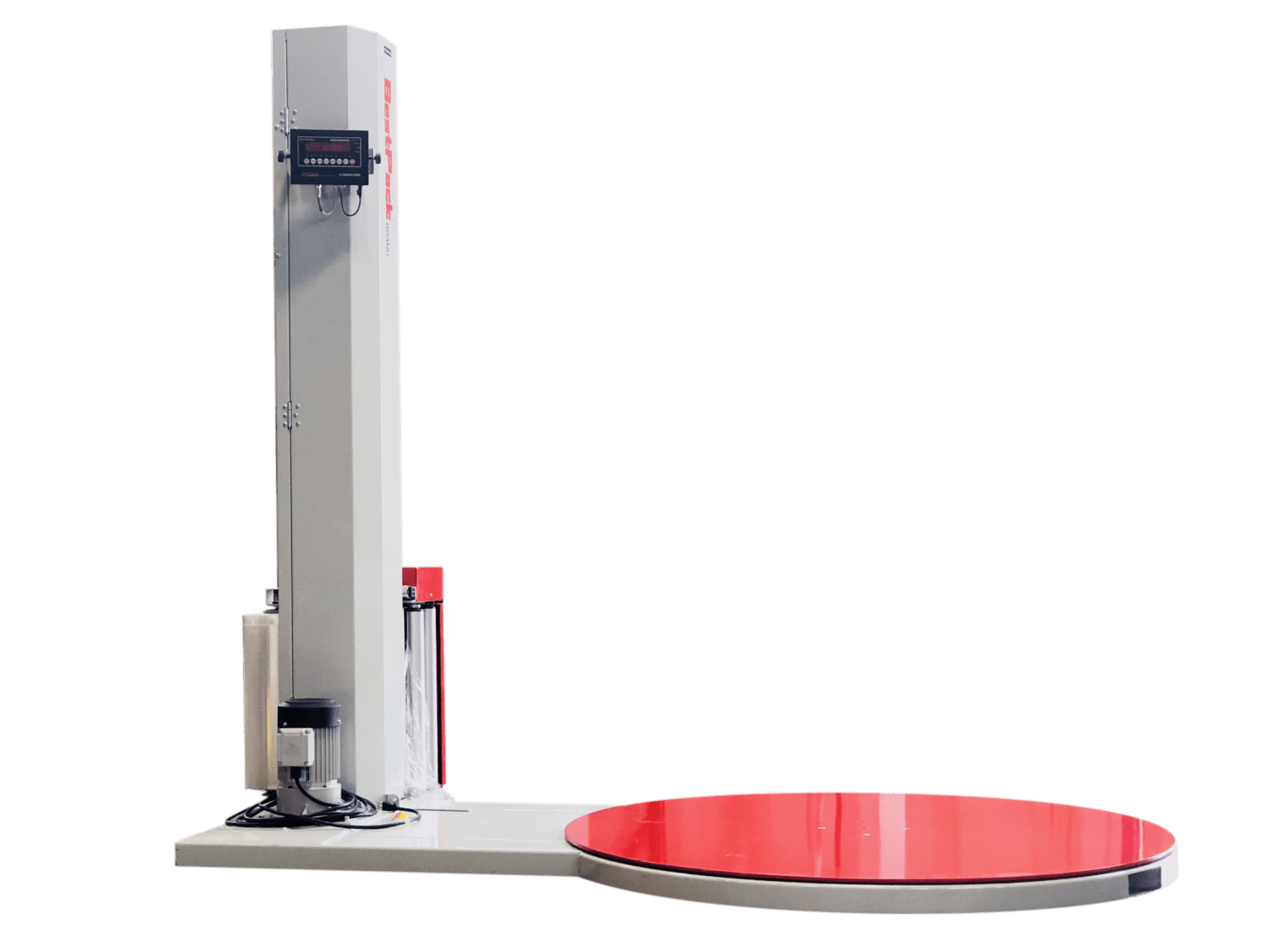

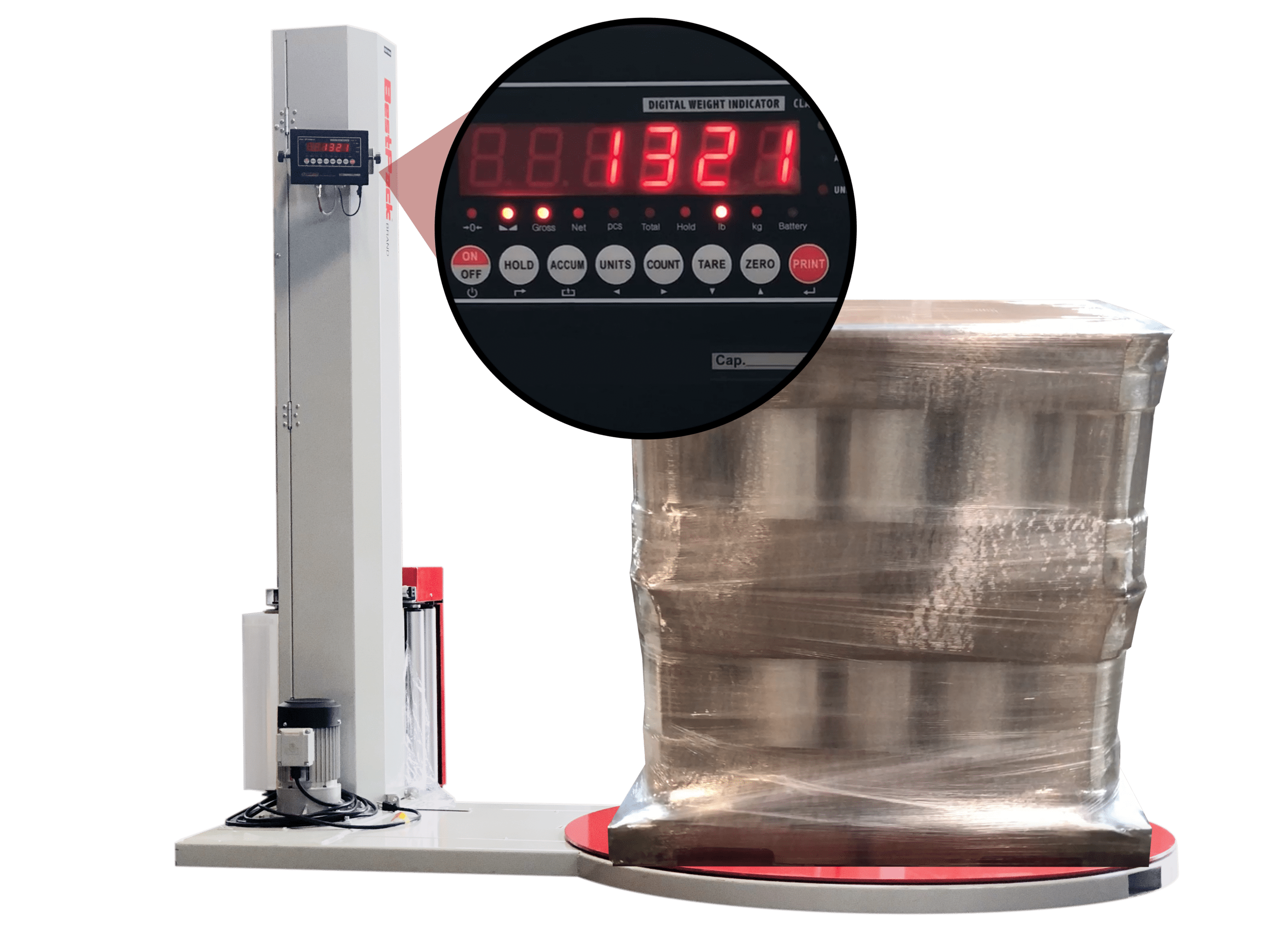

Reference photo of the S300 with scale stretch wrapper machine
  • Low Profile
  • Semi-Automatic
  • Pre-Stretch Up To 300%
Film Delivery Features
  • Standard 20″ Film Rolls (30″ Option Available)
  • Motorized Pre-stretch up to 300%, Other Ratios Available
  • “Easy Load” Film Carriage with See Thru Lexan Cover
  • Automatic Pallet Height Sensor with Adjustable Sensor Position
  • Corner Compensating Dancing Bar and Analog Control
  • Film Force Release for Easy Pull at Start of Cycle
  • Automatic Film Break or Empty Roll Detection
  • Safety Stop Switch on Carriag
Machine Specifications
  • &amp;amp;amp;lt;strong&gt;Film Delivery System: Motorized Pre-Stretch up to 300%&lt;/li> <li&gt;&lt;strong>Production Speed: 30-50 Loads/Hour Based on Load Configuration
  • Maximum Load Size: 53″ L x 53″ W x 82″ H
  • Maximum Load Weight: 5,000 lbs
  • Power: 110V, 60Hz, 20 Amps
  • Estimate Machine Weight: 2,000 lbs.
  • Machine Dimension: 98″ L x 59″ W x 86″ H
Turntable / Frame Features
    • 58″ Diameter, 3/8″ Laser-Cut Steel Plate
    • 5,000lbs. Load Capacity&amp;lt;/li>



  • ANSI# 60 Ch



    ain Drive

  • Electronic Soft Start/Stop
  • 1/2HP, AC Drive Motor with Allen-Bradley VFD
  • Low Profile
  • No Maintanance, No need to Lube Drive System
  • 12 point Heavy Duty Roller Support System
  • Built-in Forklift Channels
  • Tower with Tilt-Down Hinge for Easy Shipping
Control Features
  • On/Off with Power Indicator
  • Home Position Button
  • Variable Turntable Speed 1-12 RPM
  • &amp;amp;amp;lt;li>Variable Film Carriage Speed and Direction Controls

  • Manual Controlled Reinforce Wrap
  • Spiral Up/Down Plus Spiral Up Only Wrap Patterns
  • Turntable Jog Switch
  • Omron PLC with Communication Port
  • If Film Breaks, there is an Automatic Resume Feature
  • Motor Starter with Overload Reset and Electrical Overload Protection
  • Separate Top and Bottom Wrap Counters (0-9)
Factory Options
  • Loading Ramp (For Pallet Jack Use)
  • Integrated Electronic Scale&amp;amp;amp;lt;/li> &lt;li&amp;gt;Wrap Height Extension (Add 16″ Increment)
  • Film Roping
  • Film Cutting Device
  • Dark Load Detection
  • Turntable Extension

Download PDF Brochure

Find out more about the BestPack S300 with Integrated Scale in this brochure complete with detailed specifications.
