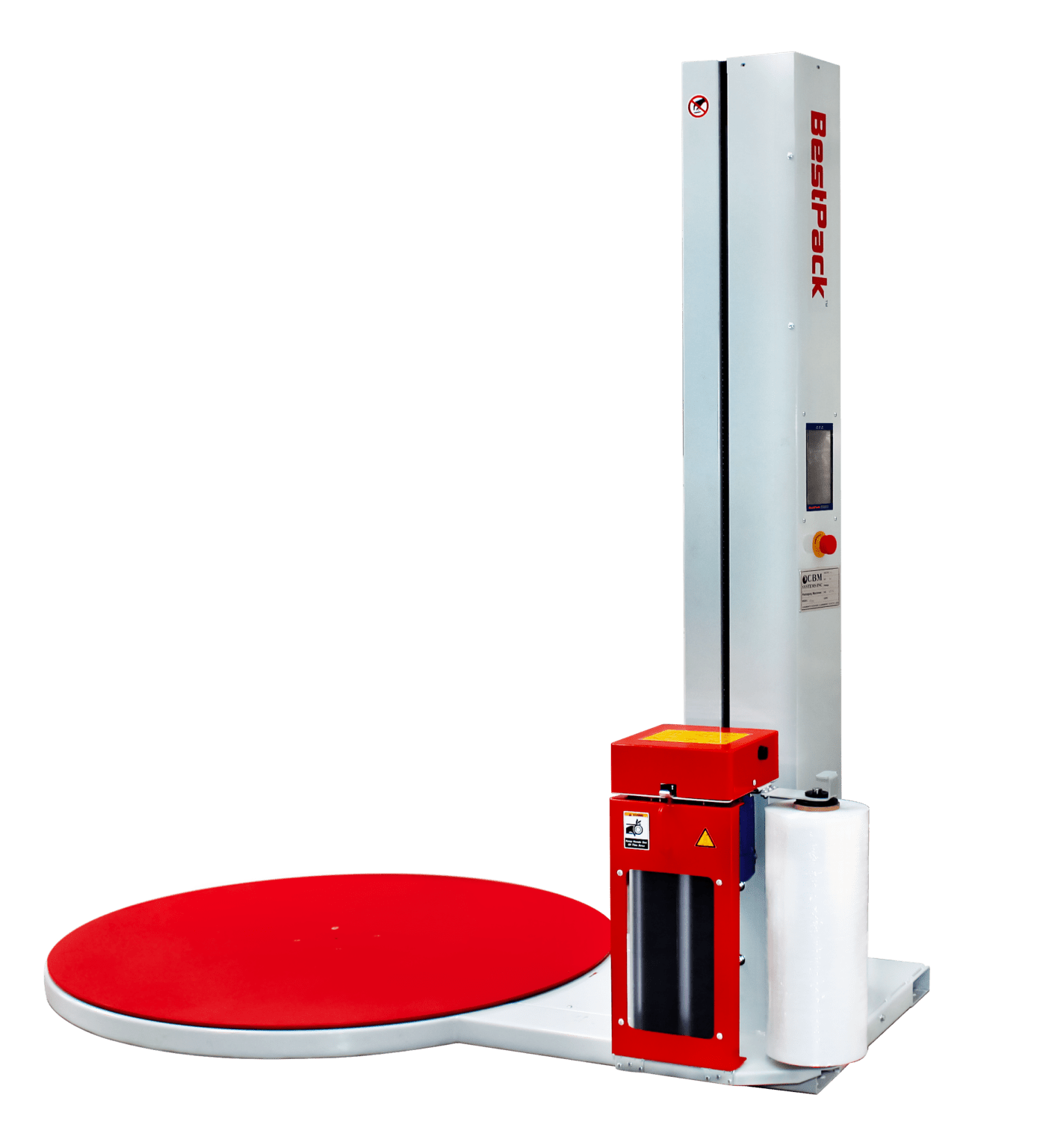

BestPack CBM Systems S300i Pallet Wrapper

The BestPack S300i Low Profile Semi-Automatic Stretch Wrapper is a heavy-duty, top-of-the-line solution designed for versatile pallet wrapping applications. Serving as an upgrade to the base S300 model, the S300i introduces a modern HMI touchscreen control panel that replaces traditional controls, providing more intuitive operation, simplified setup, and greater precision over wrap parameters.

Built with reliable TECO controls, the S300i delivers consistent performance and dependable operation in demanding warehouse environments. Its compact film carriage design improves efficiency while maintaining robust performance. Featuring dual rubber rollers with a dedicated pre-stretch motor, the machine maximizes film efficiency, allowing more loads to be wrapped per roll while reducing material costs.

For increased wrapping flexibility, the S300i offers independent up and down carriage speed control, enabling operators to fine-tune wrap patterns for different load types rather than relying on a single carriage speed. Combined with its user-friendly interface and durable construction, the S300i simplifies operator training while helping facilities improve packaging productivity, load stability, and overall wrapping consistency.

  • Low Profile
  • Semi-Automatic
  • Pre-Stretch Up To 300%
Film Delivery Features
  • Standard 20″ Film Rolls (30″ Option Available)
  • Motorized Pre-stretch up to 300%, Other Ratios Available
  • “Easy Load” Film Carriage with See Thru Lexan Cover
  • Automatic Pallet Height Sensor with Adjustable Sensor Position
  • Corner Compensating Dancing Bar and Analog Control
  • Film Force Release for Easy Pull at Start of Cycle
  • Automatic Film Break or Empty Roll Detection
  • Safety Stop Switch on Carriage
Machine Specifications

Film Delivery System:
Motorized Pre-Stretch up to 300%

Production Speed:
30-50 Loads/Hour Based on Load Configuration

Maximum Load Size:
53″ L x 53″ W x 82″ H

Maximum Load Weight:
5,000 lbs

Power:
110V, 60Hz, 20 Amps

Estimate Machine Weight:
2,000 lbs.

Machine Dimension:
98″ L x 59″ W x 86″ H

Turntable / Frame Features
  • 58″ Diameter, 3/8″ Laser-Cut Steel Plate
  • 5,000lbs. Load Capacity
  • ANSI# 60 Chain Drive
  • Electronic Soft Start/Stop
  • Low Profile
  • No Maintenance, No need to Lube Drive System
  • 12 point Heavy Duty Roller Support System
  • Built-in Forklift Channels
  • Tower with Tilt-Down Hinge for Easy Shipping
Control Features
  • Home Position Button
  • Variable Turntable Speed 1-12 RPM
  • Variable Film Carriage Speed and Direction Controls
  • Manual Controlled Reinforce Wrap
  • Spiral Up/Down Plus Spiral Up Only Wrap Patterns
  • Turntable Jog Switch
  • If Film Breaks, there is an Automatic Resume Feature
  • Motor Starter with Overload Reset and Electrical Overload Protection
  • Separate Top and Bottom Wrap Counters (0-9)
Factory Options
  • Loading Ramp (For Pallet Jack Use)
  • Integrated Electronic Scale
  • Wrap Height Extension (Add 16″ Increment)
  • Film Roping
  • Film Cutting Device
  • Dark Load Detection
  • Turntable Extension

Download PDF Brochure

Find out more about the BestPack S300i Stretch Wrapper in this brochure complete with detailed specifications.
Please contact us for additional information about Stretch Wrappers, and our team will be happy to assist you.
