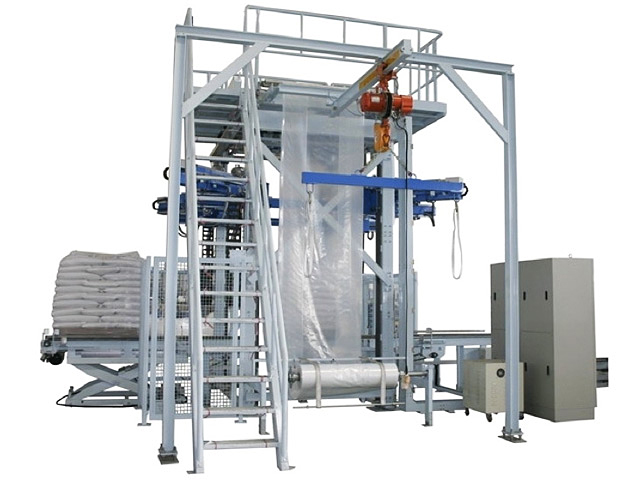

Stretch Hooders
SHC2-54
The SHC2-54 Stretch Hooders allows for an environmentally safe, cost effective, energy efficient, and convenient procedure to protect your palletized materials.
The SHC2-54 Stretch Hooders are efficient, fully automatic load securing systems initially designed to produce secured pallet loads that are waterproof for outdoor storage. The film hood used by the system exerts vertical and horizontal tension on the load, gently pressing it down onto the pallet, which considerably improves the packaging quality of unstable or heavy loads.
The Stretch Hooder can produce many pallets with a single roll of film: less frequent replacements mean reduced downtime and increased productivity. It works equally well with regular pallets or mixed-load pallets.
Unique Attributes
- The stretch hood film allows for safe transportation and storage of your products. Palletized products have never been so secure as it is with our stretch hooder.
- The film is well suited for printing a logo, company name etc., which allows for promotion during distribution of the pallet loads.
- Pallet loads that have been packaged in a stretch hooding machine are secured effectively for transportation. The load is kept tightly together by a tight film which prevents the load from shifting.
- The unbroken stretch hood film reduces the risk of theft, as the goods can only be accessible by cutting the film open.
- Our stretch hood principle utilizes packaging with film without the use of heat. This method minimizes energy consumption and eliminates any risk of fire or explosion.
- Since this is a custom built machine, any other features can be added accordingly, depending on your packaging needs.
Features
- Stretch tube hooding is cut and sealed with our patented bar sealer knife.
- Seal is air-cooled insuring a consistently strong seal.
- Vacuum cups open the formed hooding while four grippers pull the hood over the whole pallet and releases the film over and under the pallet edges.
- Includes central lifting device for pallet.
- Includes photo sensors to automatically determine the pallet size.
- Output up to 60 pallets per hour.
- PLC logic controlled.
- Maintenance free, oil-less air cylinders.
- Heavy-duty machine.
Machine & Control Specifications
- Speed: Up to 1 pallet per minute
- Machine Dimensions: 134.25"-140.16"(L) x 106.3"-122.05"(W) x 173.23"-212.6"(H)
- Carton Min/Max range: 26"-63"(L) x 26"-51.2"(W)
Download PDF Brochure
Find out more about Stretch Hooders SHC2-54 products in these colourful brochures complete with detailed specifications.
