Stretch Wrappers
B200

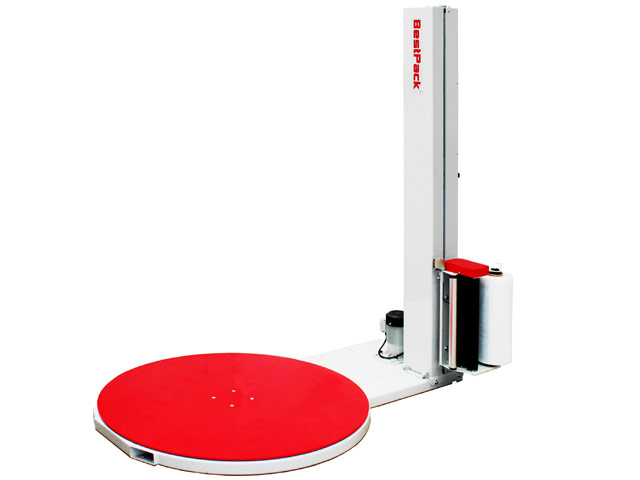

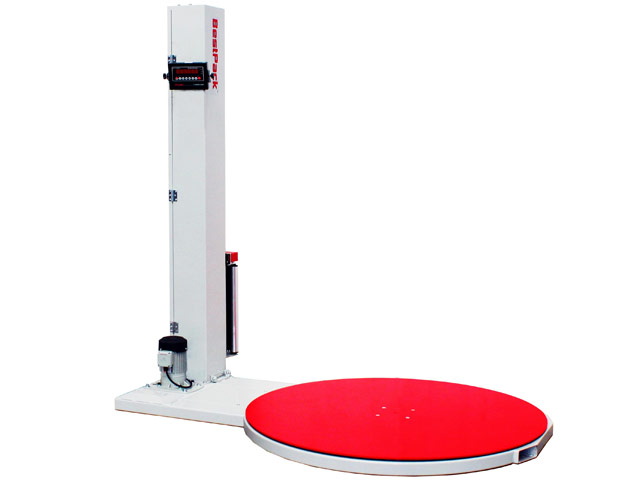

The BestPack B200 is a semi-automatic, low-profile stretch wrapper machine, designed to suit a variety of light-to-heavy duty pallet wrapping applications. Using rollers, the B200 stretch wrapper pre-stretches film up to 200% before wrapping your pallet. This pre-stretching saves film and strengthens pallet load stability, as the stretched film tends to shrink back after application.
The B200 stretch wrapper lets users wrap effectively with adjustable film carriage and turntable speeds, as well as other wrap pattern settings.
The SW stretch wrapper line is available with integrated scale, extended wrap height, and larger turntable options. All BestPack stretch wrappers feature a heavy-duty frame and offer forklift channels for easy portability.
Film Delivery Features
- Standard 20" Film Rolls (30" Option)
- Roller Ratio Pre-Stretch up to 200%
- Dual Rubber Rollers with Fixed Ratio
- Economy Carriage with Direct Film Access
- Automatic Pallet Height Sensor with Adjustable Sensor Position
Machine Specifications
- Film Delivery System: Roller Ratio Pre-Stretch up to 200%
- Production Speed: 25-35 Loads/Hour Based on Load Configuration
- Maximum Load Size: 53" L x 53" W x 82" H
- Maximum Load Weight: 4,000 lbs
- Power: 110V, 60Hz, 20 Amps
- Estimate Machine Weight: 2,000 lbs.
- Machine Dimension: 98" L x 59" W x 86" H
Turntable / Frame Features
- 58" Diameter, 3/8" Laser-Cut Steel Plate
- 4,000lbs. Load Capacity
- ANSI# 50 Chain Drive
- Electronic Soft Start/Stop
- 1/2HP, AC Drive Motor with Allen-Bradley VFD
- Low Profile
- No Maintanance, No need to Lube Drive System
- 8 point Heavy Duty Roller Support System
- Built-in Forklift Channels
- Tower with Tilt-Down Hinge for Easy Shipping
Control Features
- On/Off with Power Indicator
- Home Position Button
- Variable Turntable Speed 1-12 RPM
- Variable Film Carriage Speed and Direction Controls
- Turntable Jog Switch
- Omron PLC with Communication Port
- Motor Starter with Overload Reset and Electrical Overload Protection
- Separate Top and Bottom Wrap Counters (0-9)
- Combination Top and Bottom Wrap Counter (1-3)
- Manual Film Tension Adjustment with Clutch Setting
Factory Options
- Loading Ramp (For Pallet Jack Use)
- Integrated Electronic Scale
- Wrap Height Extension (Add 16" Increment)
- Film Roping
- Film Cutting Device
- Dark Load Detection
- Turntable Extension
Download PDF Brochure
Find out more about Stretch Wrappers B200 products in these colourful brochures complete with detailed specifications.
