Stretch Wrappers

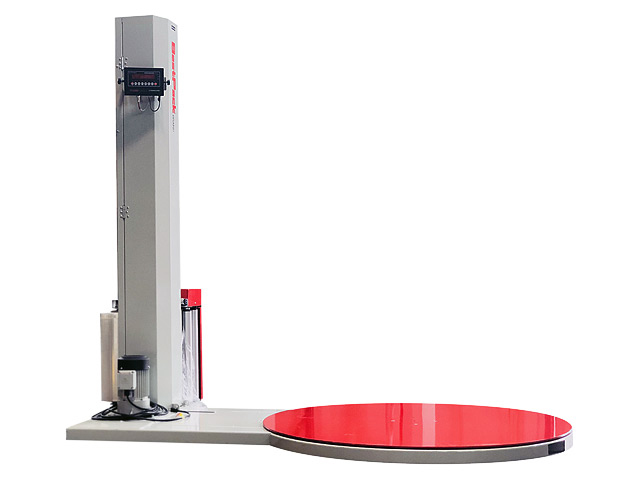

S300
The BestPack S300 is a semi-automatic, low-profile pallet stretch wrapper and is our top of the line, high performance model. It is designed to cater to a variety of light-to-heavy duty pallet wrapping applications. The S300 pre-stretches film up to 300% to maximize film savings and to tightly secure pallet loads for excellent load stability (since stretched film naturally tightens after application).
The S300 stretch wrapper is designed with exclusive productivity features. When wrapping sharp pallet corners, the S300’s corner compensating dancing bar combats film tearing. The S300 also provides advanced tension, banding, and pattern controls that make it easy to intelligently wrap your loads. The S300 pallet wrapper is simple to operate thanks to the Easy Load film carriage and Film Force Release feature, which makes pulling film out to your pallet easy.
The SW stretch wrapper line is available with integrated scale, extended wrap height, and larger turntable options. All BestPack stretch wrappers feature a heavy-duty frame and offer forklift channels for easy portability.
Film Delivery Features
- Standard 20" Film Rolls (30" Option Available)
- Motorized Pre-stretch up to 300%, Other Ratios Available

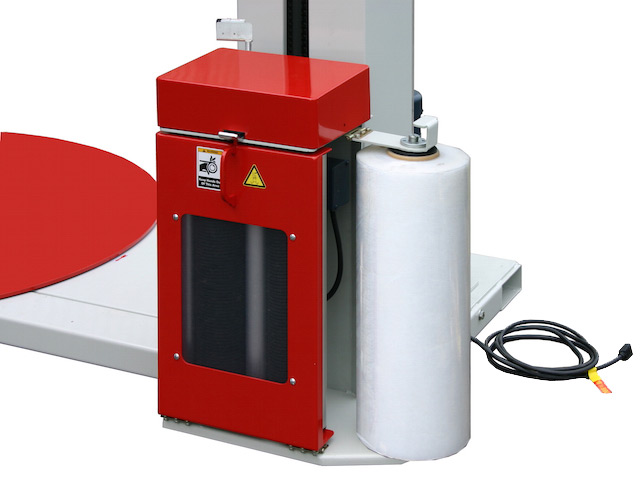

- "Easy Load" Film Carriage with See Thru Lexan Cover
- Automatic Pallet Height Sensor with Adjustable Sensor Position
- Corner Compensating Dancing Bar and Analog Control
- Film Force Release for Easy Pull at Start of Cycle
- Automatic Film Break or Empty Roll Detection
- Safety Stop Switch on Carriage
Machine Specifications
- Film Delivery System: Motorized Pre-Stretch up to 300%
- Production Speed: 30-50 Loads/Hour Based on Load Configuration
- Maximum Load Size: 53" L x 53" W x 82" H
- Maximum Load Weight: 5,000 lbs
- Power: 110V, 60Hz, 20 Amps
- Estimate Machine Weight: 2,000 lbs.
- Machine Dimension: 98" L x 59" W x 86" H
Turntable / Frame Features
- 58" Diameter, 3/8" Laser-Cut Steel Plate
- 5,000lbs. Load Capacity
- ANSI# 60 Chain Drive
- Electronic Soft Start/Stop
- 1/2HP, AC Drive Motor with Allen-Bradley VFD
- Low Profile
- No Maintanance, No need to Lube Drive System
- 12 point Heavy Duty Roller Support System
- Built-in Forklift Channels
- Tower with Tilt-Down Hinge for Easy Shipping
Control Features
- On/Off with Power Indicator
- Home Position Button
- Variable Turntable Speed 1-12 RPM
- Variable Film Carriage Speed and Direction Controls
- Manual Controlled Reinforce Wrap
- Spiral Up/Down Plus Spiral Up Only Wrap Patterns
- Turntable Jog Switch
- Omron PLC with Communication Port
- If Film Breaks, there is an Automatic Resume Feature
- Motor Starter with Overload Reset and Electrical Overload Protection
- Separate Top and Bottom Wrap Counters (0-9)
Factory Options
- Loading Ramp (For Pallet Jack Use)
- Integrated Electronic Scale
- Wrap Height Extension (Add 16" Increment)
- Film Roping
- Film Cutting Device
- Dark Load Detection
- Turntable Extension
Download PDF Brochure
Find out more about Stretch Wrappers S300 products in these colourful brochures complete with detailed specifications.
