Stretch Wrappers
S300-S

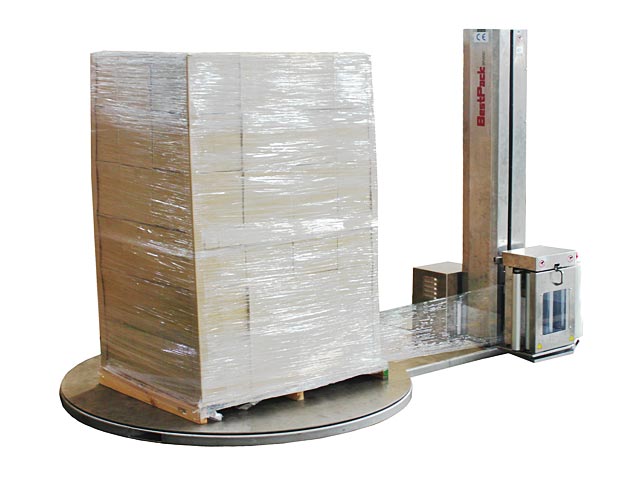

The BestPack S300-S is a semi-automatic, low-profile stretch wrapper designed to cater to light-to-heavy duty pallet wrapping applications. It is our top of the line, high performance S300-S stretch wrapper in stainless steel and is designed for wet environments. Like the S300-S, the S300-S wrapper will pre-stretch film up to 300%.
The S300-S stretch wrapper is designed with the same productivity features as the S300-S to efficiently reduce handling time and securely wrap pallets. These features include corner compensating technology; advanced tension, banding, and pattern controls; an Easy Load film carriage; and Film Force Release for easy film dispensing.
The SW stretch wrapper line is available with integrated scale, extended wrap height, and larger turntable options. All BestPack stretch wrappers feature a heavy-duty frame and offer forklift channels for easy portability.
Film Delivery Features
- Standard 20" Film Rolls (30" Option Available)
- Motorized Pre-stretch up to 300%, Other Ratios Available
- "Easy Load" Film Carriage with See Thru Lexan Cover
- Automatic Pallet Height Sensor with Adjustable Sensor Position
- Corner Compensating Dancing Bar and Analog Control
- Film Force Release for Easy Pull at Start of Cycle
- Automatic Film Break or Empty Roll Detection
Machine Specifications
- Film Delivery System: Motorized Pre-Stretch up to 300%
- Production Speed: 30-50 Loads/Hour Based on Load Configuration
- Maximum Load Size: 53" L x 53" W x 82" H
- Maximum Load Weight: 5,000 lbs
- Power: 110V, 60Hz, 20 Amps
- Estimate Machine Weight: 2,000 lbs.
- Machine Dimension: 98" L x 59" W x 86" H
Turntable / Frame Features
- 58" Diameter, 3/8" Laser-Cut Steel Plate
- 5,000lbs. Load Capacity
- ANSI# 60 Chain Drive
- Electronic Soft Start/Stop
- 1/2HP, AC Drive Motor with Allen-Bradley VFD
- Low Profile
- No Maintanance, No need to Lube Drive System
- 12 point Heavy Duty Roller Support System
- Built-in Forklift Channels
- Tower with Tilt-Down Hinge for Easy Shipping
Control Features
- On/Off with Power Indicator
- Home Position Button
- Variable Turntable Speed 1-12 RPM
- Variable Film Carriage Speed and Direction Controls
- Manual Controlled Reinforce Wrap
- Spiral Up/Down Plus Spiral Up Only Wrap Patterns
- Turntable Jog Switch
- Omron PLC with Communication Port
- If Film Breaks, there is an Automatic Resume Feature
- Motor Starter with Overload Reset and Electrical Overload Protection
- Separate Top and Bottom Wrap Counters (0-9)
Factory Options
- Loading Ramp (For Pallet Jack Use)
- Integrated Electronic Scale
- Wrap Height Extension (Add 16" Increment)
- Film Roping
- Film Cutting Device
- Dark Load Detection
- Turntable Extension
Download PDF Brochure
Find out more about Stretch Wrappers S300-S products in these colourful brochures complete with detailed specifications.
