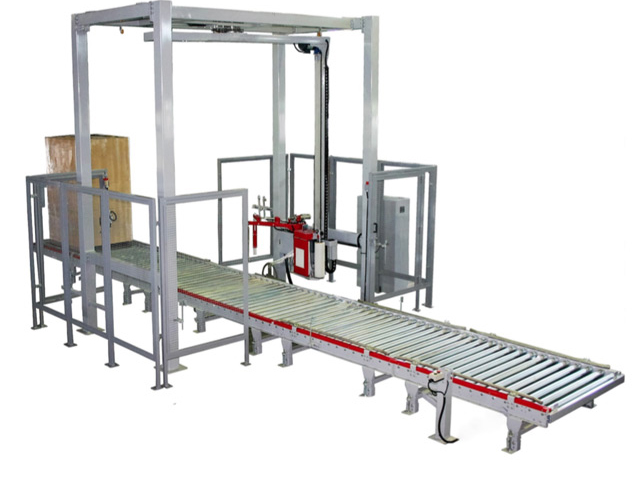

Stretch Wrappers
RAC-300-A
The wide range of CBM System's automatic stretch wrapping systems offer you high performance, durability, economy, and maximum versatility to meet you packaging application needs.
These stretch wrappers offer a convenient and cost-effective way to optimize your stretch wrapping applications.
Rotary
Automatic
Pre-Stretch Up To 300%
Rotary Tower / Film Delivery Features
- Standard 20" Film Rolls (30" Option Available)
- Motorized Pre-stretch up to 300%, Other Ratios Available
- See Thru Lexan Cover
- Automatic Pallet Height Sensor with Adjustable Sensor Position
- Film Force Release for Easy Pull at Start of Cycle
- Automatic Film Break or Empty Roll Detection
- Film Tension Control with Analog Sensor
- Automatic Film Clamper and Cutter
- Brush-On Film Tail Treatment
- Counter Balance Arm for Smooth Rotation
- Pneumatic Brake to Provide Quick Safety Stop
- Rotary Arm Supported by 4 Legs Design
- All Structural Steel Construction
Machine Specifications
- Production Speed: 60 Loads/Hour Based on Load Configuration
- Maximum Load Size: 48" L x 42" W x 80" H
- Air Requirement: 3.6 CFM at 90 PSI
- Power: 230V, 15 Amps
- Machine Dimension: 170" L x 162" W x 150" H
Conveyor Features
- Infeed / Outfeed with Loading Indexing Sensor
- 2.5" Diameter Roller on 3.75" Centers
- 52" Between Frame Rails
- All Forward Manual Mode
- 1/2 HP Motor with Contactor
Control Features
- PLC with 24V Control System
- Touch Screen Operator Interface
- Auto-Height Sensing Photoeye
- Current Overload Protection
- Separate Top and Bottom Wrap
- Variable Rotary Arm Speed
- Electronic Soft Start/Stop
- E-Stop Mushroom Push Button
- Safety Fencing Monitoring
Factory Options
- Conveyor Specifications (Customizable)
- Conveyor with Variable Speed Control
- Pick up Bumper at Conveyor End
- Wrap Height Extension
- Heat Seal Unit
Download PDF Brochure
Find out more about Stretch Wrappers RAC-300-A products in these colourful brochures complete with detailed specifications.
Please contact us for additional information about Stretch Wrappers, and our team will be happy to assist you.
