Stretch Wrappers
B150-W

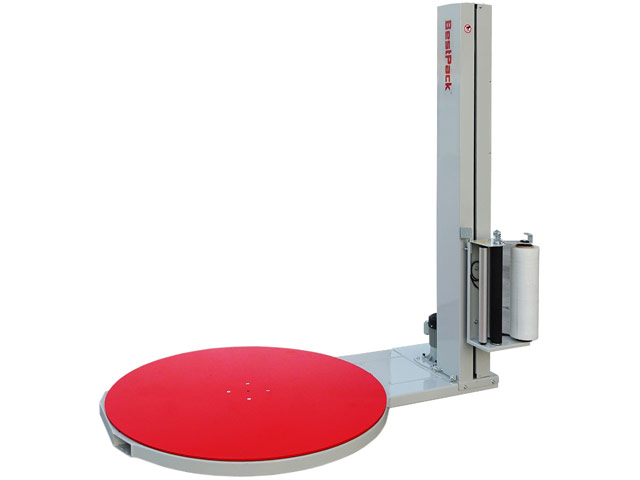

The BestPack B150-W Stretch Wrapper adds powerful scale functionality to the semi-automatic, low-profile B150 Stretch Wrapper. The B150-W stretch wrapper stretches film up to 150% using clutch tension and dual rollers. It produces secure, consistent wraps, ensuring pallet load integrity and a professional appearance. The B150 is designed to eliminate poorly or inconsistently hand wrapped loads caused by operator fatigue and the risk of back injury when hand wrapping.
The B150-W Stretch Wrapper offers adjustable settings for your pallets, including variable film carriage speed and turntable speed controls.
The SW stretch wrapper line is available with integrated scale, extended wrap height, and larger turntable options. All BestPack stretch wrappers feature a heavy-duty frame and offer forklift channels for easy portability.
Film Delivery Features
- Standard 20" Film Rolls (30" Option)
- Clutch Tension Setting Provide Pre-Stretch up to 150%
- Dual Aluminum Rollers with Fixed Ratio
- Easy Film Feed Carriage
- Automatic Pallet Height Sensor with Adjustable Sensor Position
Machine Specifications
- Film Delivery System: Clutch Tension Setting Provides up to 150% Film Stretch
- Production Speed: 25-35 Loads/Hour Based on Load Configuration
- Maximum Load Size: 53" L x 53" W x 82" H
- Maximum Load Weight: 4,000 lbs
- Power: 110V, 60Hz, 20 Amps
- Estimate Machine Weight: 2,000 lbs.
- Machine Dimension: 98" L x 59" W x 86" H
Turntable / Frame Features
- 58" Diameter, 3/8" Laser-Cut Steel Plate
- 4,000lbs. Load Capacity
- ANSI# 50 Chain Drive
- Electronic Soft Start/Stop
- 1/2HP, AC Drive Motor with Allen-Bradley VFD
- Low Profile
- No Maintanance, No need to Lube Drive System
- 8 point Heavy Duty Roller Support System
- Built-in Forklift Channels
- Tower with Tilt-Down Hinge for Easy Shipping
Control Features
- On/Off with Power Indicator
- Home Position Button
- Variable Turntable Speed 1-12 RPM
- Variable Film Carriage Speed and Direction Controls
- Turntable Jog Switch
- Omron PLC with Communication Port
- Motor Starter with Overload Reset and Electrical Overload Protection
- Combination Top and Bottom Wrap Counter (1-3)
- Manual Film Tension Adjustment with Clutch Setting
Factory Options
- Loading Ramp (For Pallet Jack Use)
- Integrated Electronic Scale
- Wrap Height Extension (Add 16" Increment)
- Film Roping
- Film Cutting Device
- Dark Load Detection
- Turntable Extension
